Bug #1380
open
Area Chart – Visual and General Formatting Issues (Arabic & English Interfaces)
Description
Visual Section:
1- In the Y-axis, the Reverse Range option is not functioning properly.
2- In Grid Lines, the Transparency option does not work, and the Line Style is not applied.
3- In Lines, the Join Type option is not functioning.
4- In Lines, changing the color does not apply correctly.
General Section:
1- In the Effects section, when adjusting Background Transparency, the transparency does not behave correctly. Instead of becoming transparent, the background becomes darker.
Files

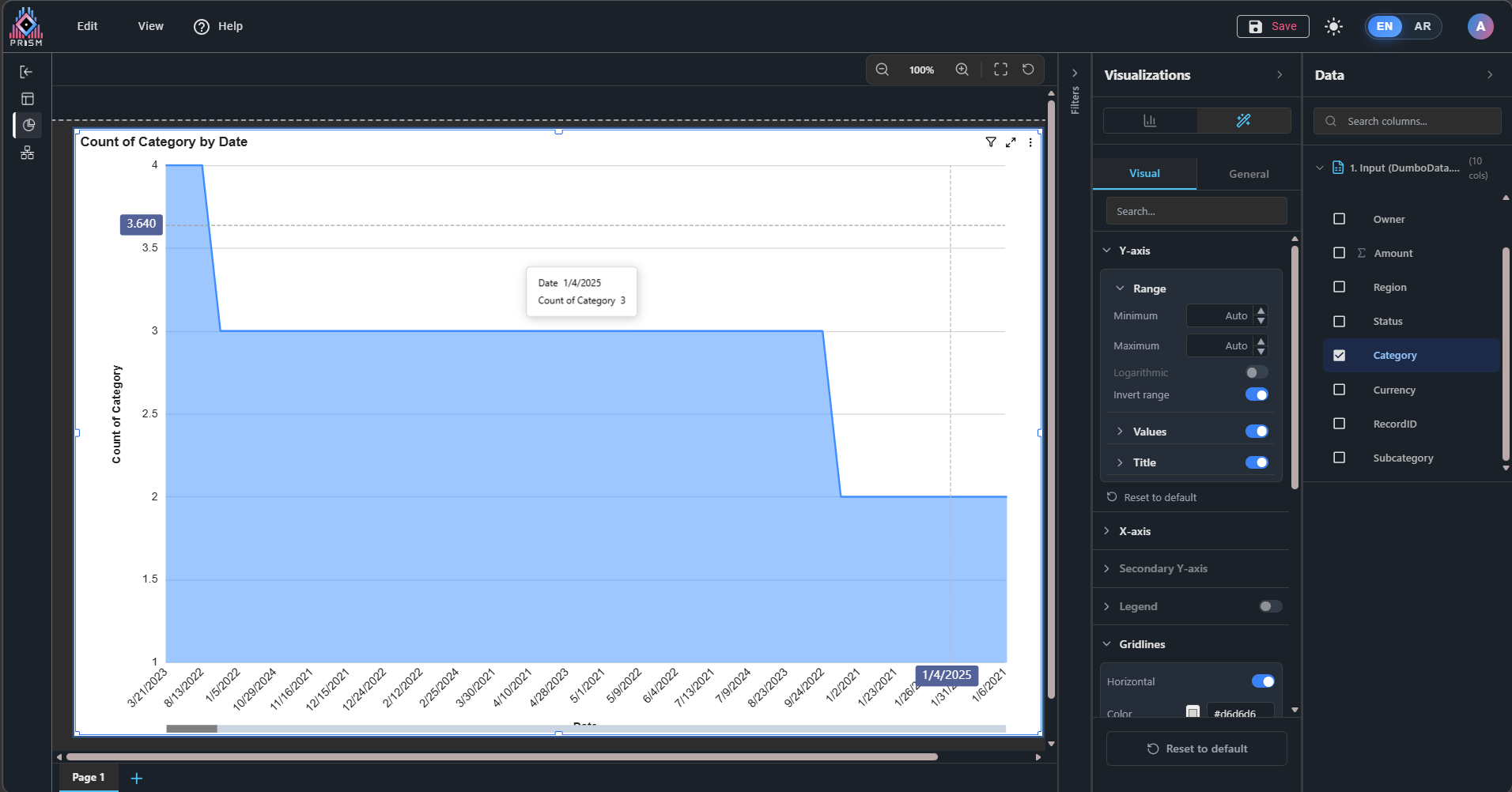

| 1.png (148 KB) 1.png | Image (1): Illustrates the issue mentioned in Point 1 – Visual section. | ||

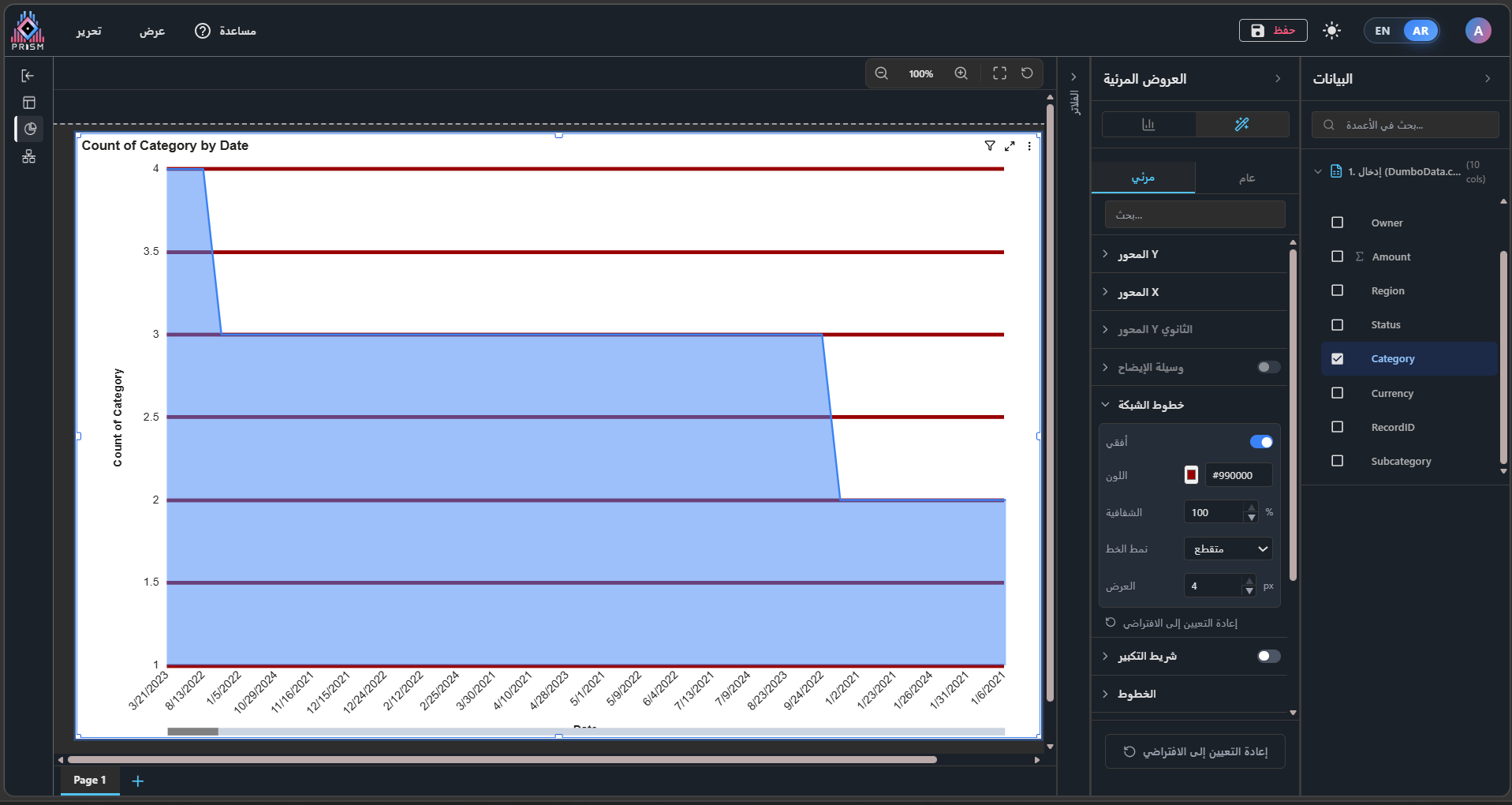

| 2.png (143 KB) 2.png | Image (2): Illustrates the issue mentioned in Point 2 – Visual section. | ||

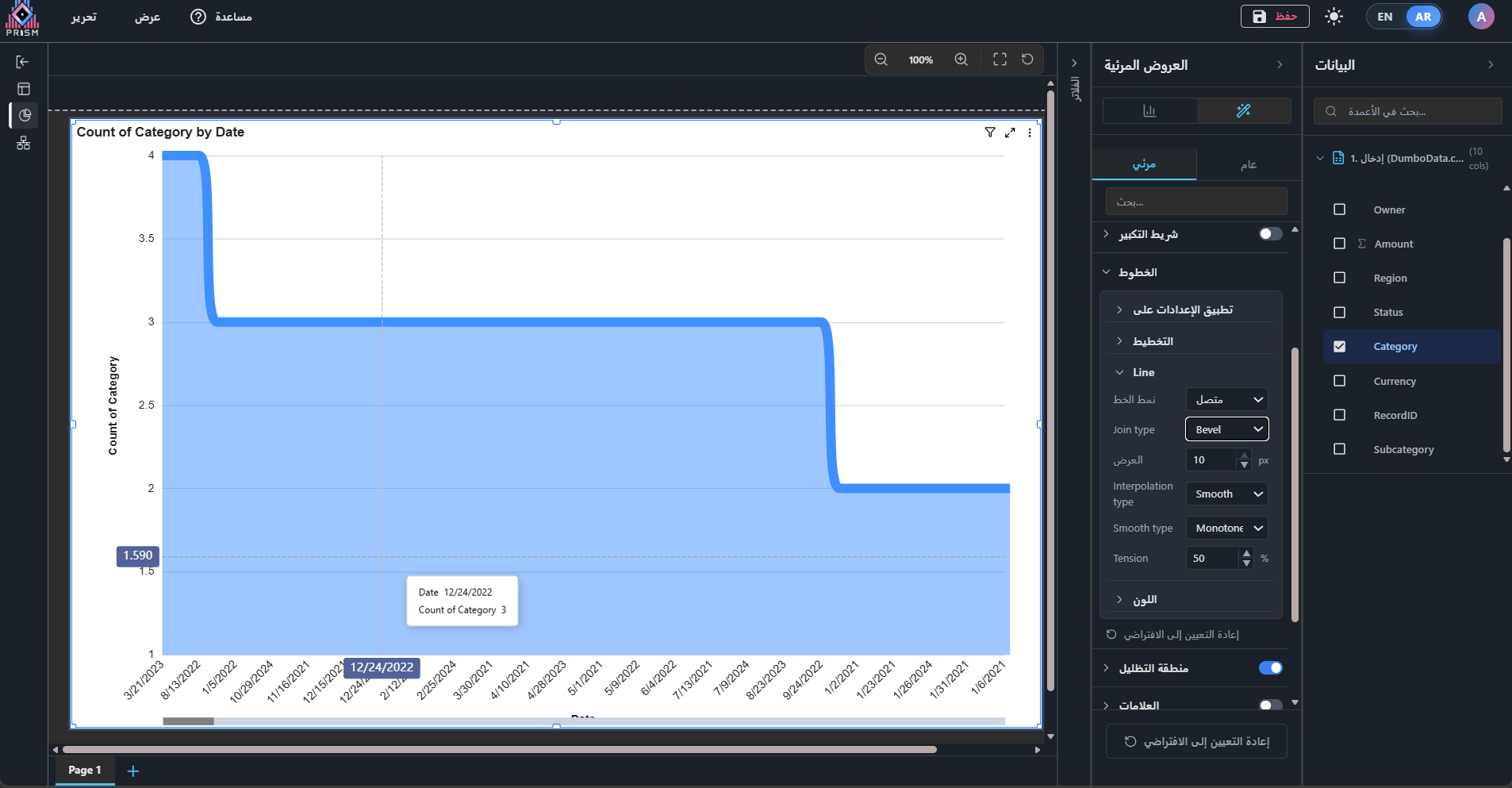

| 3.png (151 KB) 3.png | Image (3): Illustrates the issue mentioned in Point 3 – Visual section. | ||

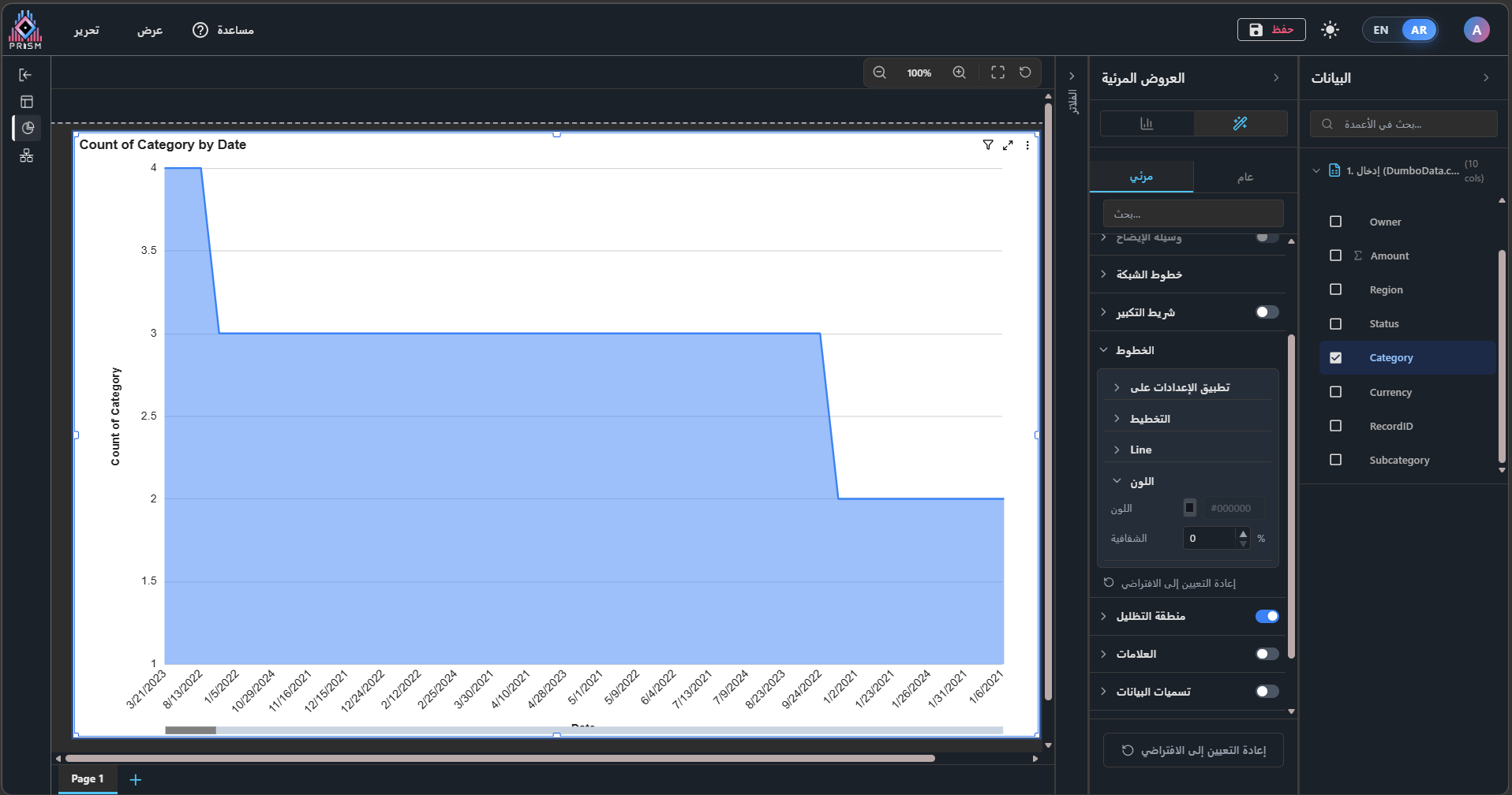

| 4.png (137 KB) 4.png | Image (4): Illustrates the issue mentioned in Point 4 – Visual section. | ||

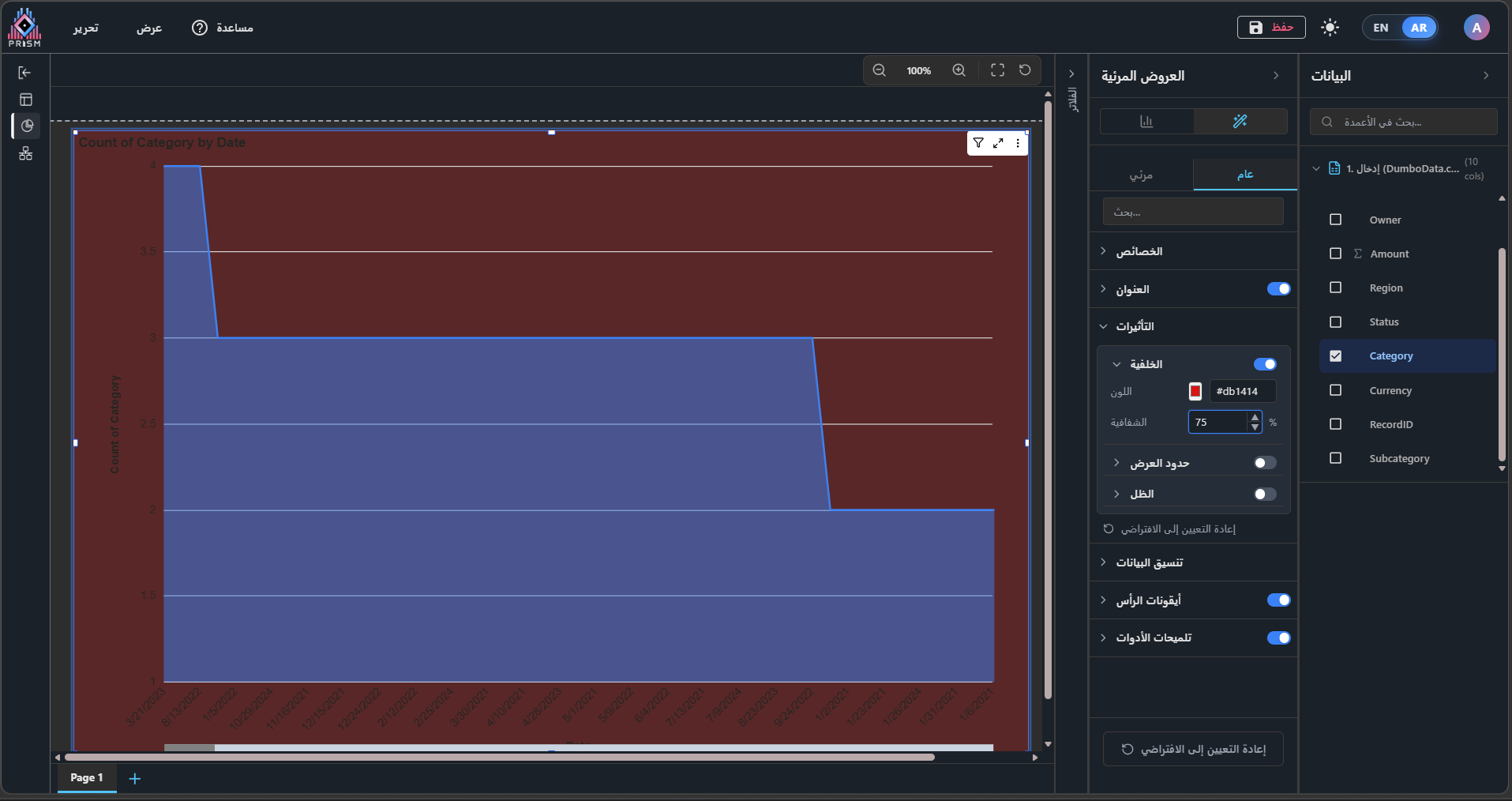

| 5.png (131 KB) 5.png | Image (5): Illustrates the issue mentioned in Point 1 – General section. |
Updated by ALi RAZA 16 days ago
- Status changed from New to Resolved
- % Done changed from 0 to 100
Resolved - Area Chart – Visual and General Formatting Issues (Arabic & English Interfaces)
These all are now working as expected as you can see in the video as well:
Visual Section:
1- In the Y-axis, the Reverse Range option is not functioning properly.
2- In Grid Lines, the Transparency option does not work, and the Line Style is not applied.
3- In Lines, the Join Type option is not functioning.
4- In Lines, changing the color does not apply correctly.
Video Attachment : https://somup.com/cOeOlgVcULa
Updated by
Updated by Fareena Anayat 15 days ago
This issue has been tested and fixed now, not moving yet till approval
